UML Profiles in Enterprise Architect Models – Example Code Generation

The UML offers an extension mechanism called Profiles to add certain semantics and additional properties to UML models. This article shows how UML Profiles can be used in Enterprise Architect and how profiled models can further be processed with the YAKINDU EA-Bridge with the exemplary use case of generating source code.

UML is a great language for describing software systems, but plain UML concepts are rarely sufficient to express domain-specific aspects. Yes, there are tools and frameworks to easily define domain-specific languages, but maybe the tooling is fixed to using Enterprise Architect. We often encounter situations where microcontroller software is modeled with UML and it is, for example, simply not possible to properly tell a plain UML element that it represents an OS task that is triggered by some event with a specific cycle period. If we decide to use UML classes to represent tasks, and we further want to use a code generator to generate some code for them, how should the generator know which class represents an OS task and which may represent something else?

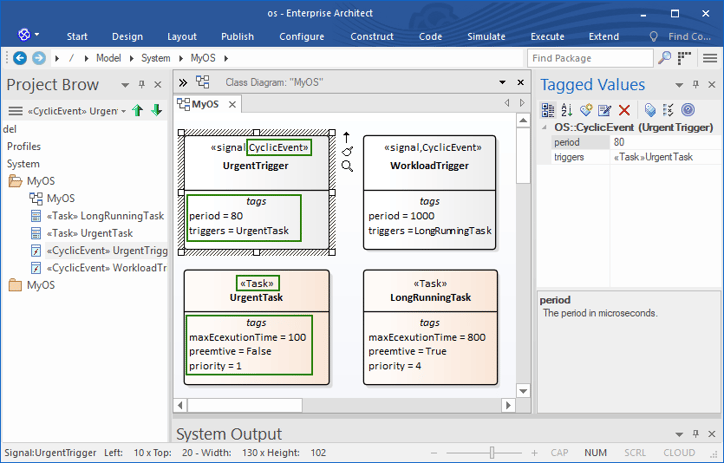

Fortunately, UML offers an extension mechanism via profiles that allows one to specify stereotypes even with additional properties to assign a certain semantics to elements. The example below shows a model where classes represent OS tasks and where signals represent cyclic events that trigger an OS task. Each element has a stereotype applied so that the meaning is explicit. Additional properties are defined as tagged values of these stereotypes, e.g. a period of cyclic events or a reference to the OS task that is triggered by the event. With this additional information, a code generator can decide how to generate code for each model element.



1-Enterprise-Architect-Project-Brow


Defining a UML Profile

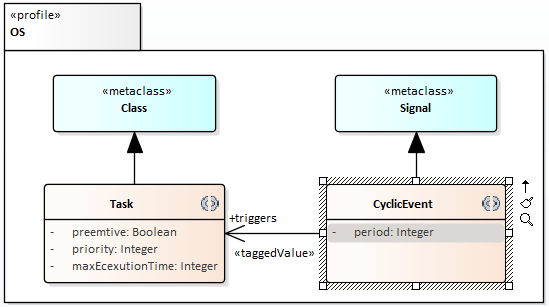

Before stereotypes can be applied to a model, they must be defined in a UML profile. The screenshot below shows the profile OS which defines the stereotypes Task (applicable to UML classes) and CyclicEvent (applicable to UML signals). Pre-defined tagged values like period and triggers are modeled as attributes or references of the stereotype.



2-Profile-OS-Task-CyclicEvent


The
EA user guide explains in detail how to define and use UML profiles in EA models.

Loading Profiled UML Models in Eclipse

Following the approach in this article, we use the YAKINDU EA-Bridge to generate code from EA models.
In the past, opening that model with the YAKINDU EA-Bridge was only possible without stereotypes because the profile was not available.

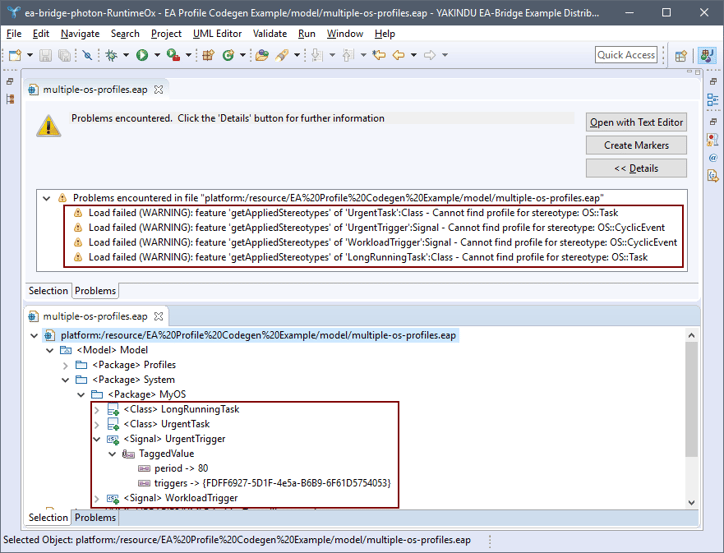

The result can be seen in the next screenshot. Warnings were raised telling the user that UML profiles were not found. Consequently, the YAKINDU EA-Bridge is not able to represent tagged values with UML concepts so general annotations of the underlying EMF framework were used instead.
The use of annotations only ensures that no data is lost, but does not allow a code generator to access the data in a UML conform way. Especially the relation between events and tasks (tagged value triggers) only loads as an ID and doesn’t resolve the referenced model element.



3-YAKINDU-EA-Bridge-Warnings

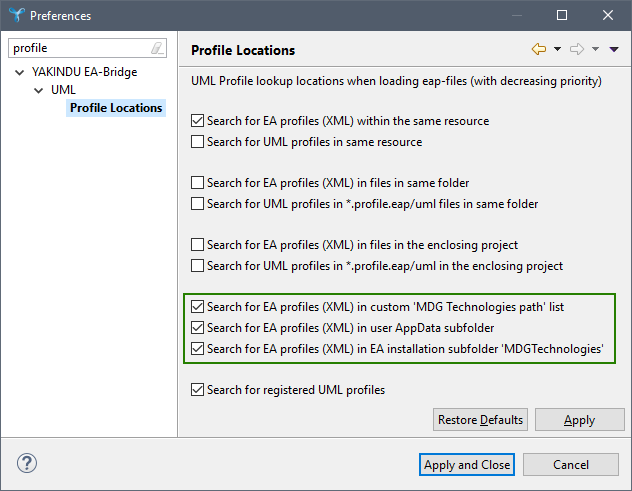

With the new version of the YAKINDU EA-Bridge it is possible to load UML profiles specified in the (XML) formats processed by Enterprise Architect. UML profiles are searched in most of the locations EA supports, especially from the EA model itself as well as from the standard and configured locations on the file system. The screenshot below shows the preference dialog of the YAKINDU EA-Bridge in Eclipse with the newly introduced options related to UML profiles. Please observe that this covers almost all of the locations the user can configure in EA. But it does not cover, for instance, UML profiles offered by EA Add-ins. To support these in the YAKINDU EA-Bridge, custom locations can be specified.



4-YAKINDU-EA-Bridge-Eclipse-Option-UML-Profiles


The screenshot below shows again the example from above.

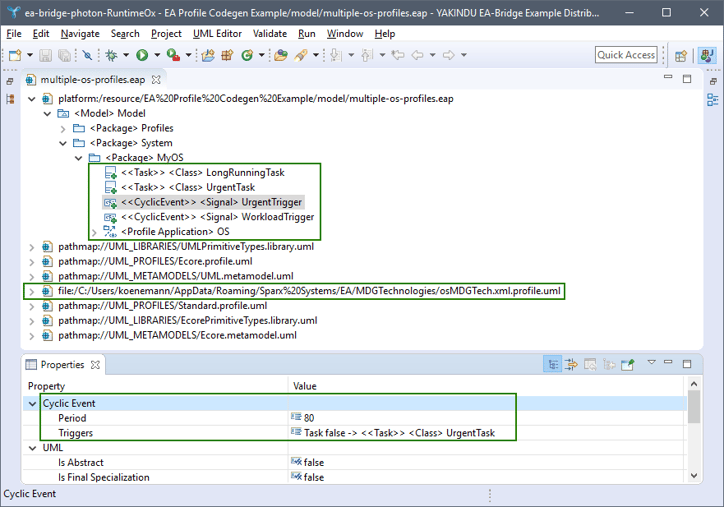

But this time the new version of the YAKINDU EA-Bridge was used. It can be seen that stereotypes are applied and that tagged values are instantiated UML conform (denoted in double angle brackets like <<Task>>). This is possible, because the UML profile as part of an MDG technology was found in a subfolder of the user’s home directory. Please observe that the name of the MDG technology file is osMDGTech.xml. The additional file extension .profile.uml is needed to indicate Eclipse UML that the file contains a UML profile.



5-YAKINDU-EA-Bridge-new-version


The tagged values of the selected model element
UrgentTrigger are listed in the Properties view, grouped by the stereotype Cyclic Event. The tagged value Triggers now resolves task UrgentTask as desired.

Code Generation for Profiled UML Models

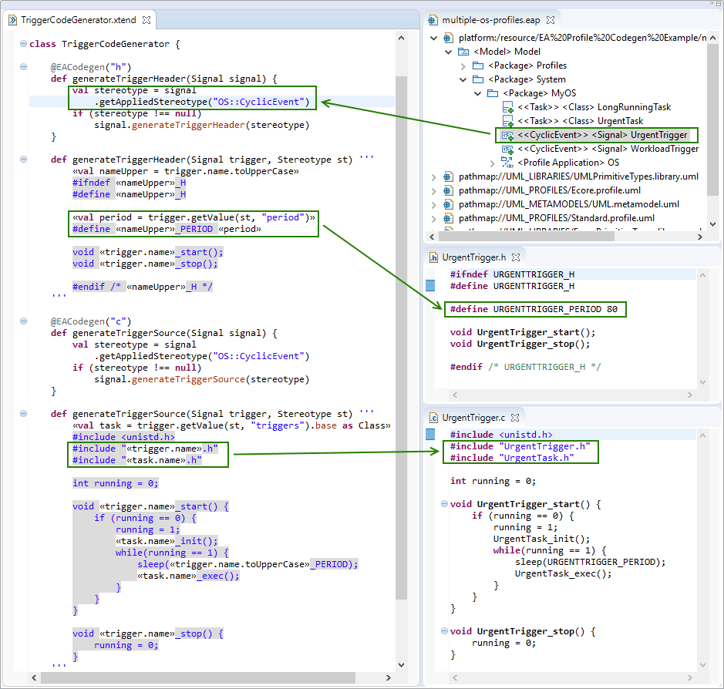

One popular use case for the YAKINDU EA-Bridge is its integration with code generators. We typically use Xtend for generating code, as already discussed in this article. The final screenshot shows such a code generator snippet that can also be used with the trial version of the YAKINDU EA-Bridge. Operations annotated with @EACodegen are called for model elements that are used as parameter types, like a Signal in our case. The returned result of this operation will be saved as file "<element name>.<ext>" where ext is the file extension that is given in the @EACodegen annotation; UrgentTrigger.h in the screenshot.



6-YAKINDU-EA-Bridge-Code-Generator-Snippet


It is quite easy to access stereotype tagged values in Eclipse UML models, as highlighted in the editor.
Function <element>.getAppliedStereotype("OS::CyclicEvent") can be used to check whether a specific stereotype is applied – if so, we can generate specific code for UML signals that represent cyclic events. Function <element>.getValue(stereotype, "period") can then be used to access its tagged values. It is even possible to resolve cross references from one stereotyped element to another, e.g. to get the triggered task for an event: <element>.getValue(stereotype, "triggers").base as Class (since getValue returns an Object, we must explicitly cast the result).

Please keep in mind that the "YAKINDU EA-Bridge Live Codegen Example" project is really just an example with only rudimentary error handling. It is useful to quickly getting started with some code generating prototype without starting a runtime instance. But if you want to seriously create a code generator, you should do that inside a separate Eclipse plugin, register a builder or a context menu action, and launch that inside an Eclipse runtime instance.

Summary

To conclude, UML profiles are very handy for adding custom, e.g. domain-specific information to your EA models. With the new version of the YAKINDU EA-Bridge, UML profiles specified for EA are now automatically located and accesses when EA models are loaded. This allows one to access the additional information in a UML conform way which makes, for instance, the implementation of code generators really easy.
